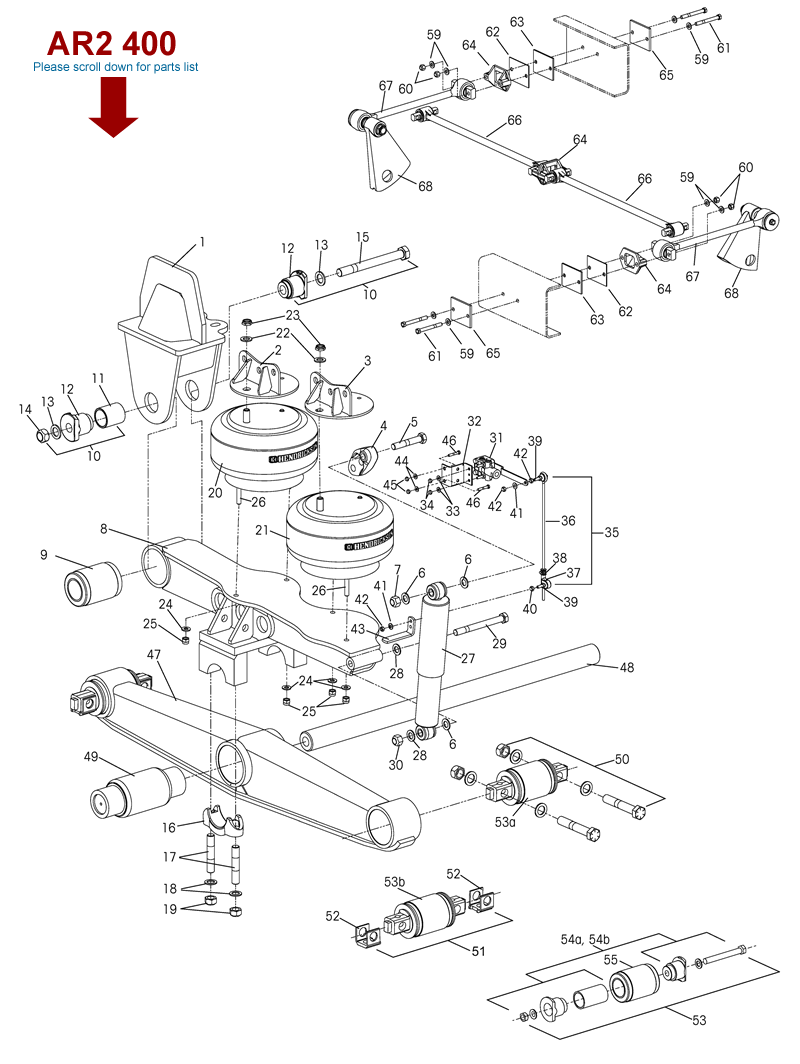

Key No Part No Description Req
1



1
65461-001
65461-003
65461-005

65461-002
65461-004
65461-006		 Frame Hanger Assembly LH Blank
33.19-34.19" Frame Width
33.25-34.50" Frame Width
34.50-34.81" Frame Width
Frame Hanger Assembly RH Blank (Not Shown)
33.19-34.19" Frame Width
33.25-34.50" Frame Width
34.50-34.81" Frame Width		 1



1
2 65426-000 Air Spring Bracket Forward 2
3 65680-000 Air Spring Bracket Rear 2
  50754-013 Upper Shock Bracket Assembly (Includes Key Nos. 4-7) 2
4 65000-001 Shock Bracket 2
5 50764-010 3/4"- 10 UNC Bolt 2
6 22962-001 3/4"  Hardened Flat Washer 4
7 49842-000 3/4"- 10 UNC Locknut 2
8




8
65655-001
65655-003
65655-005
65655-007

65655-002
65655-004
65655-006
65655-008		 Trailing Arm Assembly LH (Includes Key Nos. 8-9, 16-19)
AR2-400 9.5"
AR2-400 10.5"
AR2-460 9.5"
AR2-460 10.5"
Trailing Arm Assembly RH (Includes Key Nos. 8-9, 16-19)
AR2-400 9.5"
AR2-400 10.5"
AR2-460 9.5"
AR2-460 10.5"		 1




1

34013-111L
34013-112L		 Trailing Arm Bushing Kit (Includes Key Nos. 9-10)
AR2-400
AR2-460
9
45900-000L
29878-001L		 Trailing Arm Bushing
AR2-400
AR2-460		 2
10 21140-053L AR2 Adapter Assembly (Includes Key Nos. 11-15) 2
11 45289-003 Adapter Tube 1
12 45871-000 Beam End Adapter 2
13 22962-008 1 1/4" Washer 2
14 08017-000 1" Locknut 1
15 30550-005 1 " Hex Bolt 1
16 58795-000 Saddle Cap 2
17 06696-000 7/8"-14 UNF Saddle Cap Stud 4
18 22962-002 7/8" Hardened Flat Washer 4
19 04842-000 7/8"-14 UNF Locknut 4
20 65455-002 Air Spring Assembly Forward 2
21 65652-002 Air Spring Assembly Rear 2
  49177-017 Air Spring Hardware (Includes Key Nos. 22-26) 1
22 22962-001 3/4" Hardened Flat Washer 4
23 17700-031 3/4"- 16 UNF Nylocknut 4
24 22962-011 1/2"  Hardened Flat Washer 8
25 17700-010 1/2"- 13 UNC Nylocknut 8
26 65454-000 1/2"- 13 UNC 3.25" Stud 8
27 60665-012 Shock Absorber 2
  50754-018 Lower Shock Fastener Kit (Includes Key Nos. 28-30) 1
28 22962-001 3/4" Hardened Flat Washer 4
29 50764-013 3/4"- 10 UNC 7.50" Bolt 2
30 49842-000 3/4"- 10 UNC Locknut 2
  57977-000 Height Control Valve System (Includes Key Nos. 31-34) 2
31   *Height Control Valve 1
32   *Mounting Bracket 1
33   *1/2" Washer 2
34   *1/2" Hex Nut 2
35 58994- Control Valve Linkage Assembly (Specify Length) (Includes Key Nos. 36-42) 2
36   *Linkage Extension Rod (Specify Length) 2
37   *Adj. Valve Arm Joint 2
38   *Valve Arm Clamp 4
39   *5/16"- 18 UNC Stud 4
40   *5/16"-18 UNC Jam Nut 4
41   *5/16" Hardened Flat Washer 4
42   *5/16"- 18 UNC Locknut 4
43 65427-000 HCV Linkage Mounting Bracket 2
  57430-004 Control Valve Fastener Kit (Includes Key Nos. 44-46) 1
44 22962-029 5/16" Hardened Flat Washer 4
45 59016-000 5/16"- 18 UNC Locknut 4
46 64545-001 5/16"- 18 UNC 1.00" Bolt 4
47   See Equalizing Beam Assembly Selection Guide 45745-147 2
48 44643-009 Cross Tube 447/8" 1
49
49400-OOOL
49600-OOOL
29483-005L
34013-097		 Rubber Center Bushing
AR2-400
**AR2-400 w/Loose End Plug
AR2-460
**AR2-460 w/Loose End Plug		 2

50
51
34013-087L
34013-088L		 Bar Pin End Bushing Kit                            4
Non-Shim Type (Includes Key No. 53a and Fasteners)
Shim Type (Includes Key No. 52, 53b and Fasteners)
52
50130-000
50131-000		 Shim
.19/.19
.25/.12		 8
53
34013-049L
34013-073L		 End Bushing and Adapter Kit
AR2-400 (Includes Key Nos. 54a, 55)
AR2-460 (Includes Key Nos. 54b, 55)		 4

53a
53b
50150-000
50160-000		 Bar Pin Bushing
Non-Shim Type
Shim Type		 4

    54a
    54b

45000-007L
21140-034L		 End Bushing Adapter Kit
AR2-400
AR2-460		 4
55 45900-000L End Bushing 4

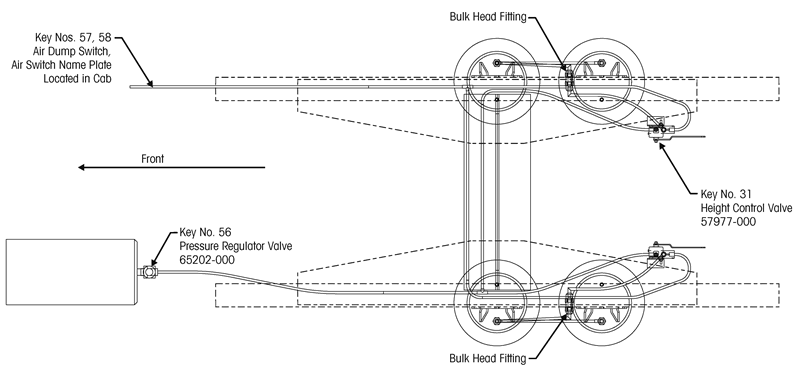

56 65202-000 Pressure Regulator Valve (back page) 1
57 48914-000 Air Dump Switch (back page) 1
58 48940-000 Air Switch Name Plate (back page) 1
  42518- ***Transverse Rod Assembly Kit (Includes Key Nos. 59-68) 1
59 22962-004 5/8" Hardened Flat Washer 8
60 30585-000 5/8"- 18 UNF Locknut 4
61 30587-001 5/8"- 18 UNF-2A Bolt 5.50" 4
62 45045-001 Spacer Plate 1/8" 4
63 45045-002 Spacer Plate 1/4" 2
64 22186-000 Torgue Rod Frame Bracket 2
65 45045-003 Backup Plate 3/8" 2
66 46681-001 ****Two Piece Torque Rod - Taper Spacer End 2
67 46610-001 ****Two Piece Torque Rod - Straddle Tube 2
68   *****Transverse Rod Axie Bracket See 59310-004 for proper axle bracket and Assembly Instructions 2

Service Kits Quick Reference

 Trailing Arm Bushing Kit
34013-111LAR2-400
34013-112LAR2-460
50754-018Shock Fastener Kit
57430-004Control Valve Fastener Kit
 Bar Pin End Bushing Kit
34013-087LNon-Shim Type
34013-088LShim Type
 End Bushing and Adapter Kit
34013-049LAR2-400
34013-073LAR2-460
 End Bushing Adapter Kit
45000-007LAR2-400
21140-034LAR2-460
42518-Transverse Rod Assembly Kit

Notes

*Item included in assembly only, part not sold separately.
**Bushing 49600-000 to be used with OTC Installation Tools.
***Transverse Rods (Key Nos. 66-67) are mandatory with the AR2 Suspension regardless of axle spacing and require rubber center beam bushings. See SEU-0213 for mandatory use of transverse rods or bronze center bushings.
****Hendrickson’s part number is stamped on the rod for identification. Be sure and include suffix number when ordering. (This number indicates rod length.) Hendrickson 2-piece ULTRA ROD® PLUS™ rods can be used to create the desired length. See literature number 45745-149.
*****Brackets for drive axles are supplied by the axle manufacturer.
