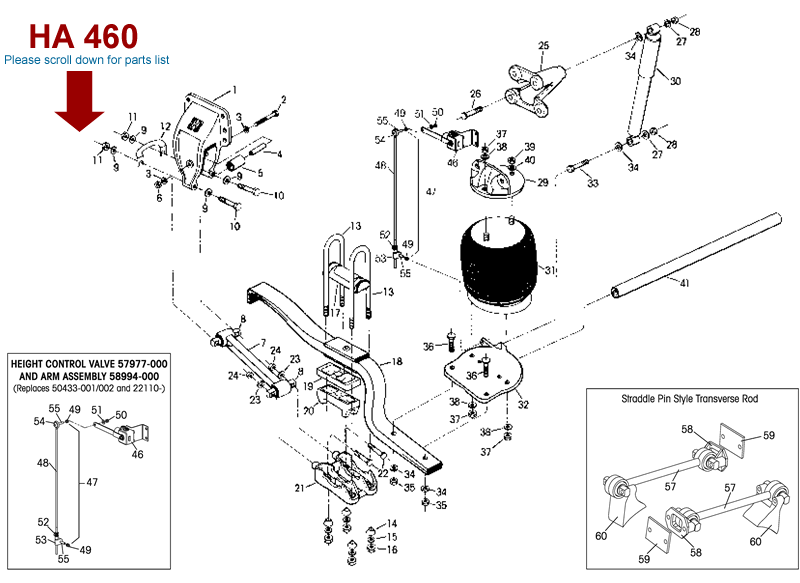

| Key No | Part No | Description | Req |
|---|---|---|---|
| 1 | 56673-001 56830- |
Front Spring Hanger Casting No. 56672-001 (Replaces Casting No. 49723-000) (Replaces Part No. 49726-001, 49047-000) Casting No. 56829-001- Specify Customer (Replaces Casting No. 48442-000) (Replaces Part No. 48533-000) |
4 |
| 49175-013 | Rebound Roller Kit (Includes Key Nos. 2-6) | 1 | |
| 2 | 24531-015 | Rebound Bolt w/Casting 48442-000 | 4 |
| 3 | 22962-014 | ½" Hardened Flat Washer | 8 |
| 4 | 57988-000 | Rebound Bolt Spacer | 1 |
| 5 | 57989-000 | Rebound Roller | 4 |
| 6 | 49846-000 | Rebound Bolt Nut | 4 |
| 7 |
48411-001 62009-400 |
Shim Type Adjustable Torque Rod Assembly HA 360/400 15.83" HA 460 15.83" (Replaces 50376-002, 32271-098) |
4 |
| 8 | 47691-OOOL 44695-OOOL 57256-000 |
Torque Rod Bushing HA 360/400 - For 62009 and 62005 Series HA 460 - For 32271 Series HA 460 - For 50376 Series |
8 |
| 49176-001 | Torque Rod Fastener Kit (Includes Key Nos. 9-11) | 1 | |
| 9 | 22962-004 | 5/8" Hardened Flat Washer | 16 |
| 10 | 32043-005 | Torque Rod Bolt | 8 |
| 11 | 47764-000 | Torque Rod Nut | 8 |
| 12 | 49689-000 | Torque Rod Shim | As Req. |
| 48718- | U Bolt Assembly (Includes Key Nos. 13-16) | ||
| 13 | 47417- | U Bolt (Specify Lenqth) | 8 |
| 14 | 48574-000 | Spherical Washer | 6 |
| 15 | 22962-002 | 7/8" Hardened Flat Washer | 16 |
| 16 | 50765-000 | U Bolt Nut (Replaces 23899-000) | 6 |
| 17 | 49337-000 | Top Pad (Replaces 48797-000) | 4 |
| 18 |
48112-001 56871-001 48645-001 |
Main Support Member HA 360(1 5/8") HA 400 (1 7/8") (Replaces 48874-000) HA 460 (2 3/8") (Replaces 48645-000) |
4 |
| 19 | 48902-000 48903-000 |
Spacer 1" 1 1/2" |
As Req. |
| 20 | Sprinq Seat (See table on pg. 22-23) | ||
| 21 | Axle Bottom Cap (See table on pg. 24) (Includes Key Nos. 22-24) | 1 | |
| 22 | 49063-000 | Axle Cap Bolt | 8 |
| 23 | 22962-004 | 5/8" Hardened Flat Washer | 8 |
| 24 | 47764-000 | Axle Cap Nut | 8 |
| 25 | 48924-000 | Shock Frame Hanger Casting No. 48906-000 (Includes Key Nos. 26-28) | 4 |
| 26 | 50368-000 | Shock Bolt (Replaces 48752-000) | 4 |
| 27 | 22962-031 | 1/2" Hardened Flat Washer | 8 |
| 28 | 49846-000 | Shock Nut (Replaces 491 40-000) | 8 |
| 29 | 50804-002 | Air Spring Frame Hanger, Casting No. 57455-000 (Replaces Casting No. 48152-000) (Replaces Part No. 57456-000, 48159-000, 50804-001) | 4 |
| 30 | 60670-003 60670-001L 60670-003 |
Shock Absorber All Others (Replaces 47902-008) Mack (Replaces 47902-009) Ford (Replaces 47902-013) |
4 |
| 31 | 49048-002 49674-002 50405-002L |
Air Spring All Others (Replaces 49207-000 and 49048-000) Mack Ford (Replaces 50405-001) |
4 |
| 32 | 48908-001 48908-002 |
Air Spring Bracket Assembly (Includes Key Nos. 33-36) LH (Casting No. 48836-001) RH (Casting No. 48836-002) |
2 2 |
| 33 | 50368-000 | Shock Bolt (Replaces 48752) | 4 |
| 34 | 22962-001 | 3/4" Hardened Flat Washer | 16 |
| 35 | 49842-000 | Main Support Member Nut (Replaces 49140-000) | 8 |
| 36 | 50369-000 | Main Support Member Bolt (Replaces 48829-000) | 8 |
| 49177-001 | Air Spring Fastener Kit (Includes Key Nos. 37-40) | 1 | |
| 37 | 17700-010 | 1/2" Nut | 12 |
| 38 | 22962-014 | 1/2" Hardened Flat Washer | 12 |
| 39 | 17700-031 | 3/4" Nut | 4 |
| 40 | 22962-001 | 3/4" Hardened Flat Washer | 4 |
| 41 | 44642-022 | Cross Tube | 2 |
| 48689-001 | Quick Release Kit (Includes Key Nos. 48-50) | ||
| 42 | 48914-000 | Air Dump Switch (Located In Cab) | 1 |
| 43 | 49193-001 | Synchro-Relay Valve (Replaced by Dump Valve in New Height Control Valve Part No. 57977-000) | 1 |
| 44 | 48940-000 | Air Switch Name Plate (Located In Cab) | 1 |
| 45 | 30272-000 | Pressure Protection Valve | 1 |
| 46 | 57977-000 | Height Control Valve (Replaces 50433-001/002) | 1 |
| 47 | 58994-000 | Height Control Valve Arm Assembly (Includes Key Nos. 48-55) (Replaces 58404-, 22110-) | 1 |
| 48 | 58993- | Extension Rod (Specify Length) (Replaces 58400-, 22107-) | 1 |
| 49 | 17491-011 | 5/16"- 18 UNC JamNut (Replaces 17491-019) | 2 |
| 50 | 59016-000 | 5/16"- 18 UNC Locknut (Replaces 48948-000) | 2 |
| 51 | 22962-029 | 5/16" Hardened Washer | 2 |
| 52 | 58969-000 | Valve Arm Clamp | 1 |
| 53 | 58987-000 | Adj. Valve Arm Joint | 1 |
| 54 | 58988-000 | Rubber Grommet | 1 |
| 55 | 58989-000 | Valve Arm Joint (Replaces 58401, 58402, 30727-000) | 2 |
| 56 | *Air Dump Switch for Height Control Valve furnished by O.E.M. | 1 | |
| 57 | 60218-000 60215-000 |
Transverse Torque Rod Assembly HA 360/400 (Replaces 52271-000) HA 460 (Replaces 50234-OOOA) |
2 |
| 58 | 22186-000 | Torgue Rod Frame Bracket | 2 |
| 59 | 45045-003 | Back Up Plate | 2 |
| 60 | Torque Rod Axle Bracket | 2 |
