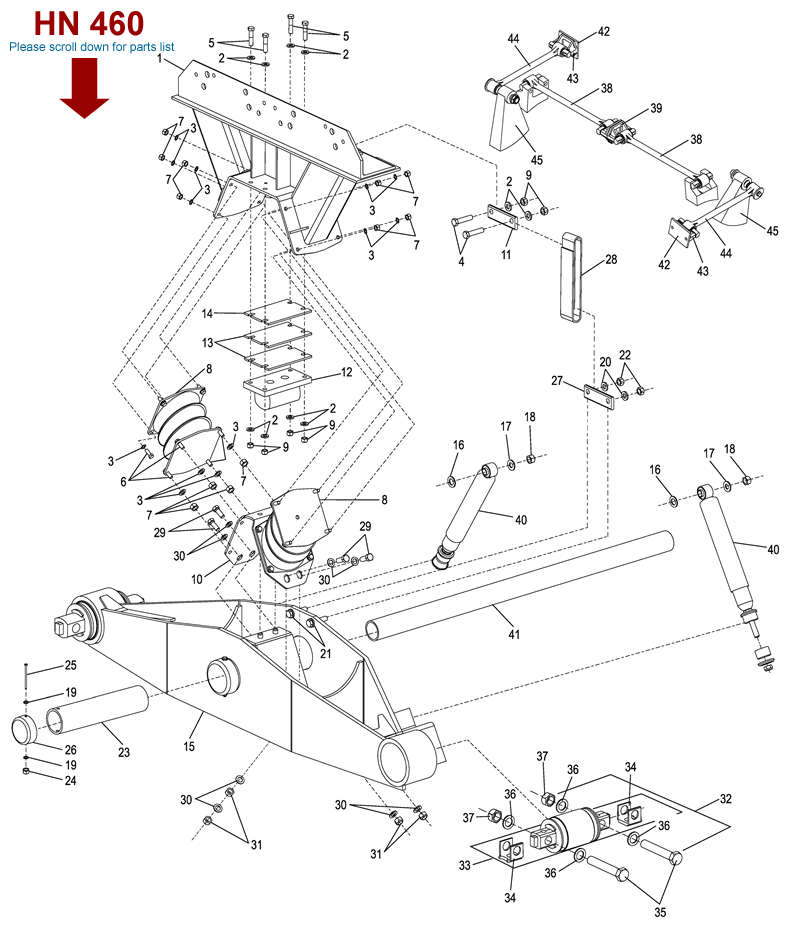

Key No Part No Description Req
1 58223- Saddle Assembly Specify Height Dim. A & Vehicle Name (Includes Key Nos. 2-9) 2
2 22962-014 1/2" Hardened Washer 24
3 22962-027 7/16" Hardened Washer 64
4 24531-018 1/2"- 13 UNC 1.75" Bolt 4
5 24531-019 1/2" - 13 UNC 2.75" Bolt 8
6 25114-011 7/16" - 20-1.25" Bolt 32
7 48949-000 7/16"- 20 UNF Locknut 32
8 60879-OOOL Bolster Spring 2
9 49846-000 1/2"- 13 UNC Locknut 12
10 57461-000 Saddle Vee Bracket 2
11 57787-000 Rebound Control Anchor Plate 2
12 57962-000 Aux. Spring Assembly 2
13 57993-002 Shim Plate 4
14 57993-003 Shim Plate 2
15 58227-XXX Beam Assembly Specify Length (Includes Key Nos. 16-28) 2
16 22962-001 1/2" Washer - Inner 4
17 22962-004 5/8" Washer - Outer 4
18 30585-000 5/8" Locknut 4
19 22962-028 1/4" Washer 4
20 22962-014 1/2" Hardened Washer 16
21 24531-017 1/2"- 13 UNC 2. 25" Bolt 4
22 49846-000 1/2"- 13 UNC Locknut 4
23 49972-000 Nylon Bushing 2
24 49983-000 1/4"- 20 UNC Locknut 2
25 50698-000 1/4"- 20 UNC 4.50" Bolt 2
26 56910-000 Center End Cap 2
27 57787-000 Rebound Control Anchor Plate 2
28 57878-003 Rebound Strap 2
  58440-001 Vee Plate Fastener Kit (Includes Key Nos. 29-31) 1
29 50764-006 3/4"-10 UNC-2A Hex Head Bolt 8
30 22962-001 3/4" Washer 24
31 49842-000 3/4"-10 UNC-2B Locknut 8
32 34013-088L Bar Pin Bushing Kit, Shim Type (Includes Key Nos. 33-37) 4
33   *Bar Pin End Bushing 4
34
50130-000 50131-000
Bar Pin Shim
.19/.19
.25/.12
8
35 48941-000 1"- 8 UNC 6" Hexbolt 4
36 22962-008 1" Hardened Washer 8
37 48942-000 1"- 8 UNC Locknut 4
38 60218-000 **Torque Rod Assembly 2
39 22186-000 Torgue Rod Frame Bracket 2
40 60680-003 Shock Absorber 4
41 44643-011 Cross Tube 1
  42518- Transverse Rod Kit (Includes Key Nos. 42-45) 1
42 45045-003 Backup Plate 2
43 22186-000 Transverse Rod Frame Bracket 2
44 60215-000 Transverse Rod Assembly 2
45   Transverse Rod Axle Bracket See 59310-004 for proper axle bracket and Assembly Instructions 2

Notes

Brackets for drive axles are supplied by the axle manufacturer.
* Item included in assembly only, part not sold separately.
** Hendrickson's part number is stamped on the rod for identification. Be sure and include suffix number when ordering. (This number indicates rod length.) Hendrickson 2-piece ULTRA RODS can also be used to create the desired length. See literature number 45745-149.
