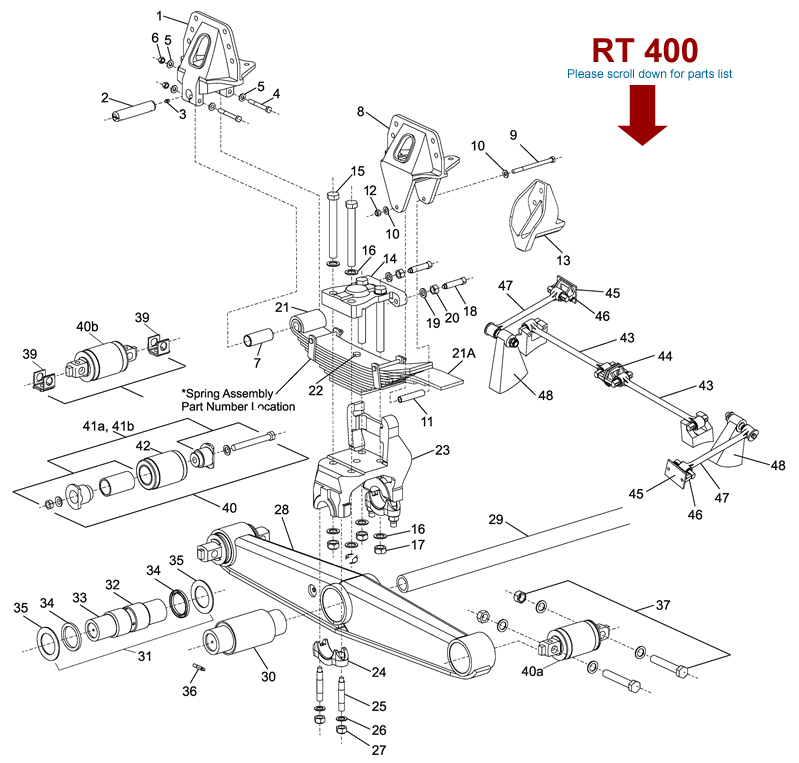

Key No |
Part No |
Description |
Req |
1 |
|
#1 Spring Hanger, Fwd., Double Lock Pin - See 45745-038-Components Section |
2 |
2 |
43146-000 |
Pin-1 3/8" Diameter Double Lock |
2 |
3 |
33117-000 |
Lube Fitting |
2 |
|
29828-035 |
Lock Bolt Kit - Key #1 Hanger (Includes Key Nos. 4 - 6) |
2 |
4 |
24531-009 |
1/2"- 13 UNC Bolt |
4 |
5 |
22962-01 1 |
1/2" Washer |
8 |
6 |
49846-000 |
1/2"- 13 UNC Locknut |
4 |
7 |
30057-008 |
Bushing 13/8" I.D. |
2 |
8 |
|
#2 Spring Hanger, Rear - See 45745-038-Components Section |
2 |
|
29828-023 |
Rebound Bolt & Spacer Kit
(Includes Key Nos. 9-12) |
2 |
9 |
24531-005 |
1/2" - 13 UNC Bolt |
2 |
10 |
22962-011 |
1/2" Hardened Washer |
4 |
11 |
00194-000 |
Spacer |
2 |
12 |
49846-000 |
1/2"- 13 UNC Locknut |
2 |
13 |
|
#3 Spring Hanger, Extended Leaf Spring - See 45745-038, Components Section |
2 |
14 |
35064-000 |
Top Pad |
2 |
15 |
30550- |
Bolt, Specify Lenqth-Dim. 'A' |
8 |
16 |
22962-006 |
1" Washer |
16 |
17 |
08017-000 |
1"- 14 UNS Top Pad Nut |
8 |
|
35370-002 |
Set Screw Kit(Includes Kev Nos. 18-20) |
4 |
18 |
06813-000 |
3/4"-10 UNC Top Pad Setscrew |
4 |
19 |
17339-000 |
Setscrew Lockwasher |
4 |
20 |
17342-000 |
3/4"-10 UNC Setscrew Nut |
4 |
21*
21A* |
58193-000
58194-000
45027-000
47057-000
58192-000
45121-000
45322-000 |
Spring Assembly
RT-340/343 STD Duty
RT-340/343 Light Duty
RT-400/403
RT-460/463
RTE-340/343
RTE-400/403
RTE-460/463
|
2 |
22 |
05069-000 |
Center Bolt, 1/2" or 5/8" Diameter, Specify Lenqth |
2 |
23 |
31017-023
31017-025
31017-022
31017-109
31017-096
31017-110 |
Saddle Assembly
RT/RTE-340 Height 63/16"(Includes Key Nos.24-27)(Casting No. 46529)
RT/RTE-340 Height73/16"(Includes Key Nos. 24-27)(Casting No.46138)
RT/RTE
RT/RTE-343/400/403 Height 6" (Includes Key Nos. 24 - 27) (Casting No. 57167)
RT/RTE-343/400/403 Height 73/16"
(Includes Key Nos. 24 - 27)(Casting No. 57143)
RT/RTE-460/463 Height 6"
(Includes Key Nos. 24 - 27)(Casting No.57457)
RT/RTE-460/463 Height 73/16"
(Includes Key Nos. 24 - 27)(Casting No.57155) |
2 |
24 |
06662-000
58795-000 |
Saddle Cap
RT/RTE-340
RT/RTE-343/400/403/460/463 |
4 |
25 |
07002-000
06696-000 |
7/8"- 14 UNF Saddle Cap Stud
RT/RTE-340
RT/RTE-343/400/403/460/463 |
8 |
26 |
22962-002 |
7/8" Washer |
8 |
27 |
04842-000 |
7/8"- 14 UNF Saddle Cap Nut |
8 |
28 |
|
See Equalizing Beam Assembly Selection Guide 45745-147 |
2 |
29 |
44642-008
44643-009 |
Cross Tube - Length 447/8"
RT/RTE-340,115/16"Diameter
RT/RTE-343/400/403/460/463, 2 7/16" Diameter |
1 |
30 |
06664-000
22279-000
49400-000
49600-000
29483-005
34013-097 |
Rubber Center Bushing
RT/RTE-340
RT/RTE-340 w/Loose End Plug**
RT/RTE-343/403
RT/RTE-343/403 w/Loose End Plug**
RT/RTE-463 Optional, Requires Transverse Rods
RT/RTE-463w/Loose End Plug**, Optional, Requires Transverse Rods |
2 |
31 |
30436-OOOL 30437-OOOL |
Bronze Center Bushing Kit(Includes Key Nos. 32 - 36)
RT/RTE-340 (Optional)
RT/RTE-343/400/403/460/463 |
1 |
32 |
30240-001
30240-002 |
Bronze Center Bushing
RT/RTE-340(Optional)
RT/RTE-343/400/403/460/463 |
2 |
33 |
14684-000
14685-000 |
Beam Center Sleeve
RT/RTE-340(Optional)
RT/RTE-343/400/403/460/463 |
2 |
34 |
30333-000
30334-000 |
Beam Center Seal
RT/RTE-340(Optional)
RT/RTE-343/400/403/460/463 |
4 |
35 |
32364-000
32365-000 |
Thrust Washer
RT/RTE-340(Optional)
RT/RTE-343/400/403/460/463 |
8 |
36 |
30087-000 58758-001 |
Lube Fitting
w/ Forged Beam
w/ Fab Beam |
2 |
37
38 |
34013-087L 34013-088L |
Bar Pin End Bushing Kit
Non-Shim Type (Includes Key No. 40a and Fasteners)
Shim Type (Includes Key Nos. 39, 40b and Fasteners) |
4 |
39 |
50130-000 50131-000 |
Shim
.19/.19
.25/.12 |
8 |
40
|
34013-049L 34013-073L |
End Bushing and Adapter Kit
RT/RTE-343/403 (Includes Key Nos. 4 la 42)
RT/RTE-463 (Includes Key Nos. 41b, 42) |
4 |
40a 40b |
-- |
Bar Pin End Bushing*****
Non-Shim Type
Shim Type |
4 |
41a 41b |
45000-007L 21140-034L |
End Bushing Adapter Kit
RT/RTE-340/403
RT/RTE-463 |
4 |
42 |
45900-OOOL |
End Bushing RT-343/463 |
1 |
43 |
60218-000 |
Torque Rod Assembly (2-Piece)*** |
2 |
44 |
22186-000 |
Torque Rod Frame Bracket |
2 |
|
42518- |
Transverse Rod Assembly Kit****(Includes Key Nos. 45 - 48) |
1 |
45 |
45045-003 |
Backup Plate |
2 |
46 |
22186-000 |
Transverse Rod Frame Bracket |
2 |
47 |
60215-000 |
Transverse Rod Assembly (2-Piece) |
2 |
48 |
|
Transverse Rod Axle Bracket See 59310-004 for proper axle bracket and Assembly Instructions |
2 |
NOTE: Brackets for drive axles are supplied by the axle manufacturer. |
* Specify spring assembly part number, located on side or top of spring clip (as shown in exploded view). Individual spring leaves available: The number 1 (Main Leaf) and number 2 (Wrapper Leaf) can be ordered separately. Use spring part number and add a -001 or -002. Such as 58193-001 Main Leaf. The number 3 leaf is available in addition to the Main and Wrapper Leaves for the extended leaf spring, add -003, such as 45322-003. |
** Center Bushing 22279-000 to be used with OTC Installation Tools. |
*** Hendrickson's part number is stamped on the rod for identification. Be sure and include suffix number when ordering (this number indicates rod length). Hendrickson 2-piece ULTRA RODS can be used to create the desired length. See literature number 45745-149. |
**** Transverse Rods (Key 47) are mandatory for all walking beam series suspensions with capacities of 44,000 Ibs. thru 52,000 Ibs. when using rubber equalizing beam center bushings (Key 29), regardless of axle spacing. See SEU-0213 for mandatory use of transverse rods or bronze center bushings. |
